Descrizione
Tre funzioni in un solo contenitore: inverter a onda sinusoidale pura, caricabatterie con tecnologia di carica adattiva e commutatore rapido della linea in corrente alternata.
La sigla riassume le caratteristiche elettriche: batteria a 12 V, 1200 VA di potenza, 50 A di corrente di carica e ingresso limitato a 16 A, con uscita a 120 V. Il collegamento agli altri apparati avviene su bus VE.Bus.
Questa serie prende il posto dei precedenti MultiPlus Compact.
Caratteristiche tecniche
| Dimensioni strumento | 406 mm |
|---|---|
| Colore luce/CCT | Blue (RAL 5012) |
| Protezione IP | IP21 |
| Peso strumento | 8.2 kg |
| Materiale | Steel chassis with ABS cover |
| Omologazioni e certificazioni | EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1 |
| Potenza di uscita sonar | 1,000 W |
| Tensione ingresso | [95, 140] VAC |
| Tensione uscita | 120 VAC |
| Efficienza | 93 % |
| Corrente di carica/uscita | 50 A |
| Temperatura di esercizio | [-40, 65] °C |

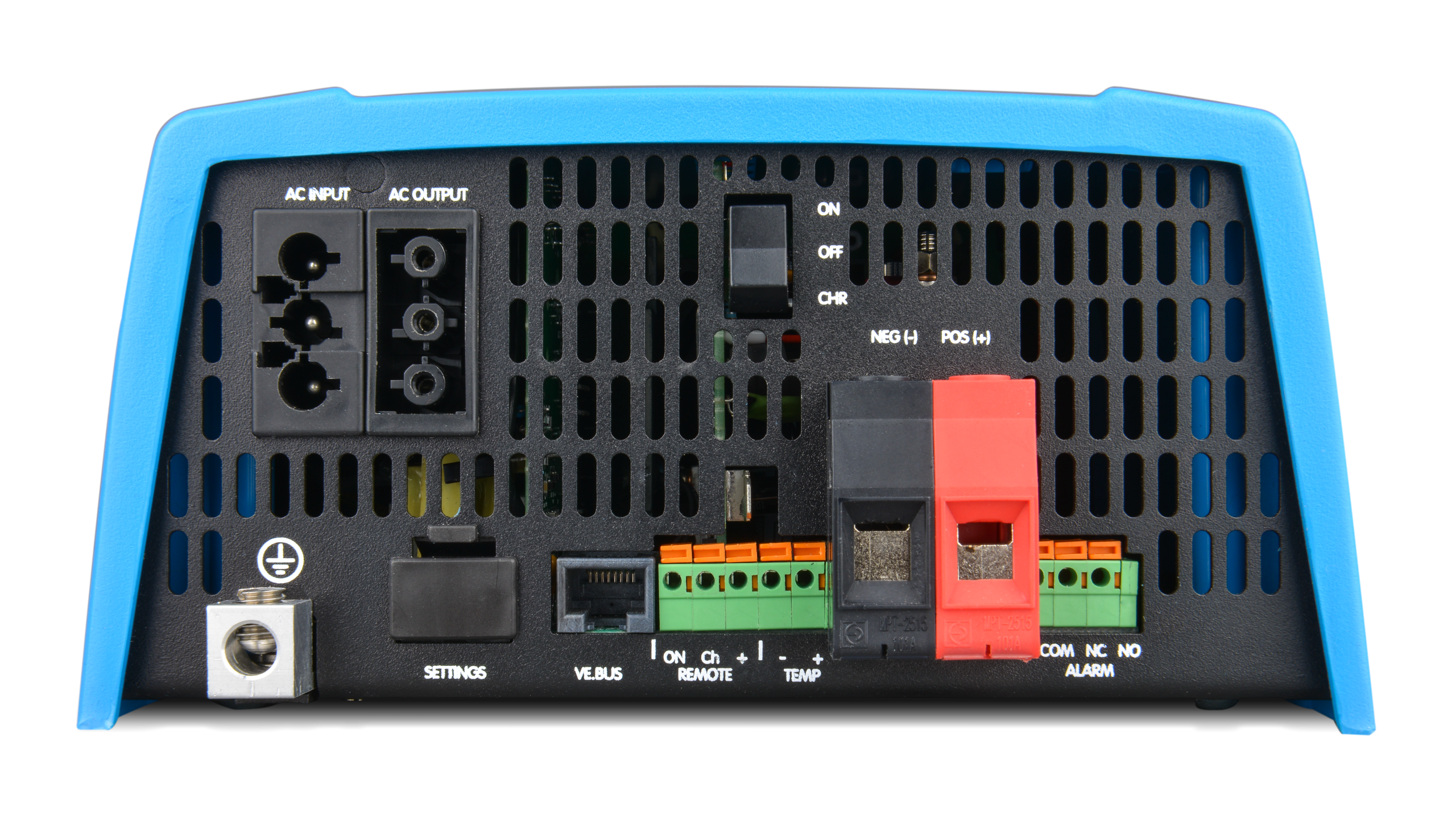

| Remote terminal type | Screw terminal two pole |
| Relay terminal type | Screw terminal 3-pole |
| AC connection terminal type | G-ST18i plug |
| Battery connection terminal type | Screw terminals 35 mm² (2 AWG) |
| VE.bus communication port | One RJ45 terminal, RJ45-spliter ASS030065510 to expand to two ports |
| Automotive directive | ECE R10-4 |
| AC output frequency ±0.1% (adjustable) | 60 Hz |
| Nominal battery voltage | 12 V |
| Charge algorithm | Adaptive, 4-stage |
| Charge voltage absorption (adjustable) | 14.4 VDC |
| Charge voltage float (adjustable) | 13.8 VDC |
| Charge voltage storage (adjustable) | 13.2 VDC |
| Communication Port | VE.Bus |
| Programming via computer or app | True |
| Continuous power at 25°C (Nonlinear load, crest factor 3:1) | 1,200 VA |
| AC input frequency range | [55, 65] Hz |
| DIP switches for programming | True |
| Fan assisted cooling | True |
| Internal DC fuse rating | 200 A |
| Maximum humidity (non-condensing) | 95 % |
| Temperature Sensor | Included |
| Number of AC Inputs | 1 |
| Number of AC Outputs | 1 |
| Parallel operation | True |
| Peak power rating | 2,400 W |
| PowerAssist | True |
| PowerControl | True |
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Remote terminal | On / Off / Charger only |
| Three phase operation | True |
| Transfer switch AC current rating | 16 A |
| Zero Load Power | 13 W |
| Zero load power in search mode | 4 W |
