Descrizione

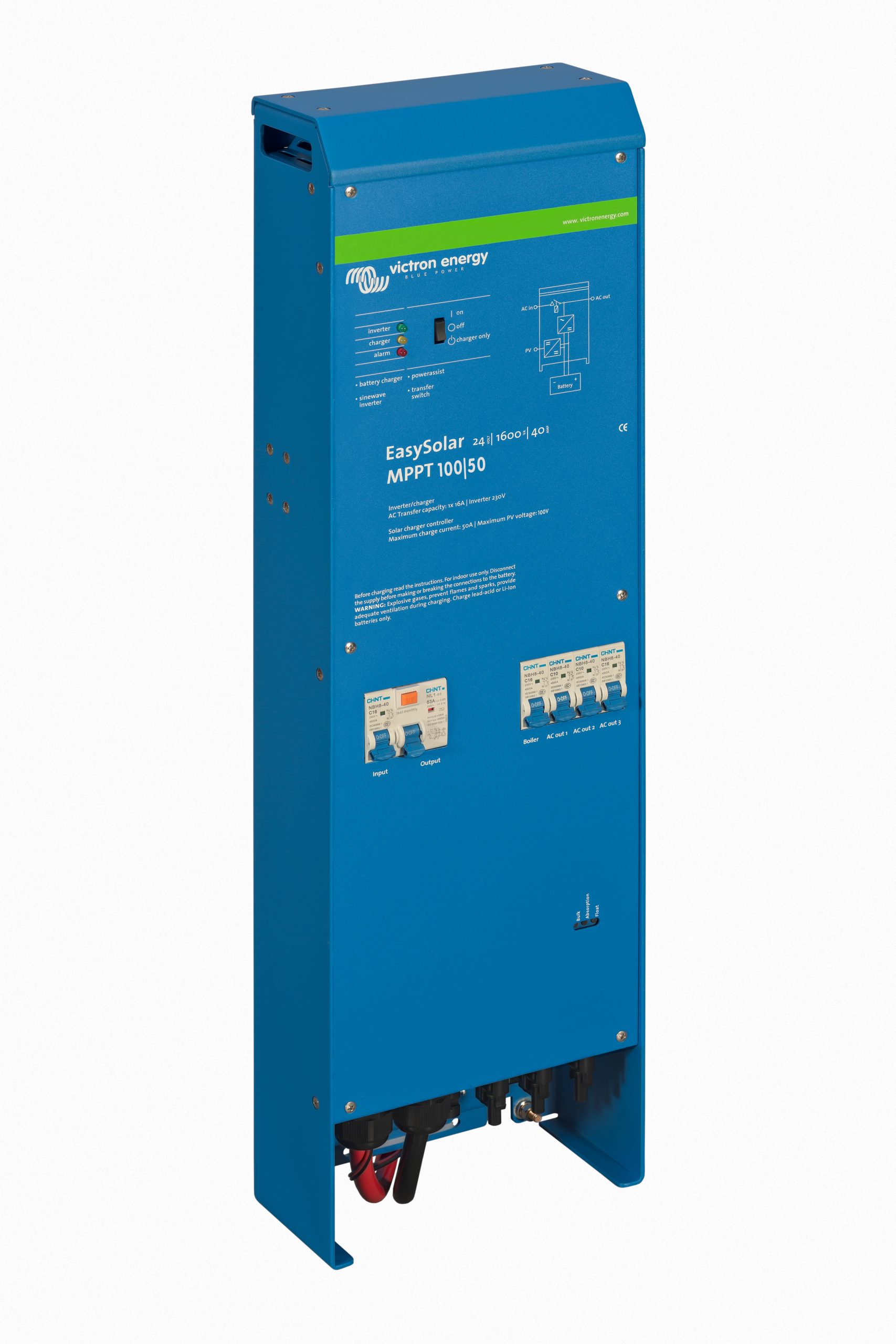

Tre apparecchi in un unico involucro: regolatore di carica solare MPPT, inverter/caricabatterie e distribuzione in corrente alternata. La conseguenza pratica è un impianto che si monta in fretta, con poche connessioni da realizzare.

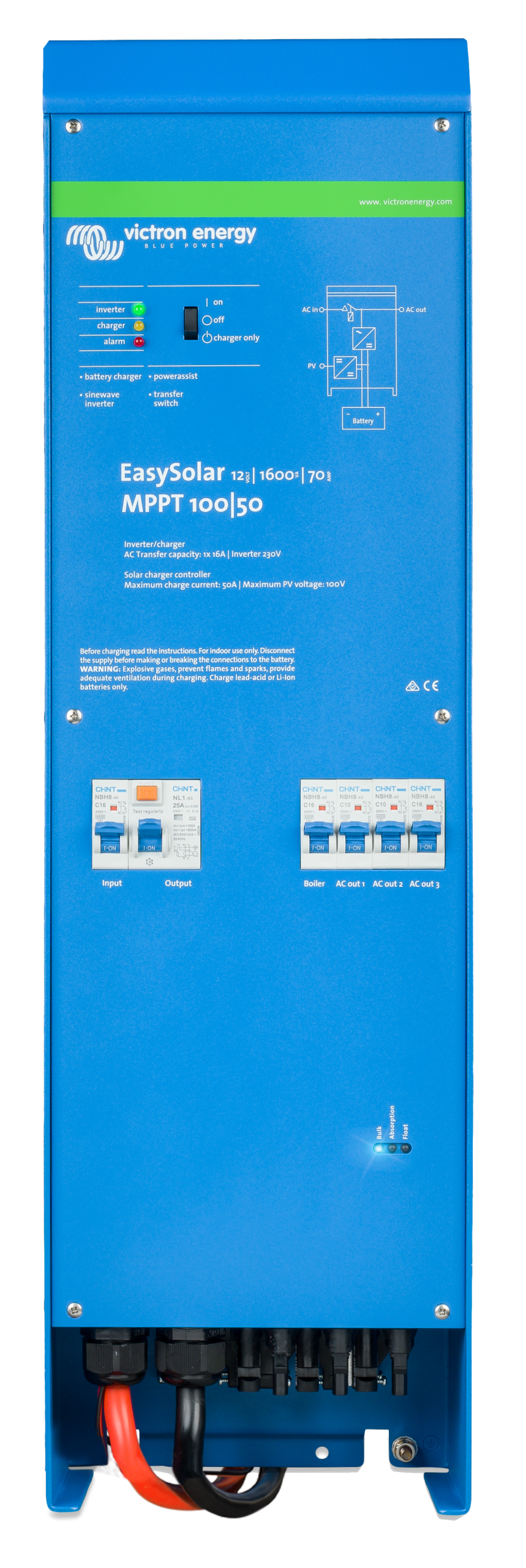

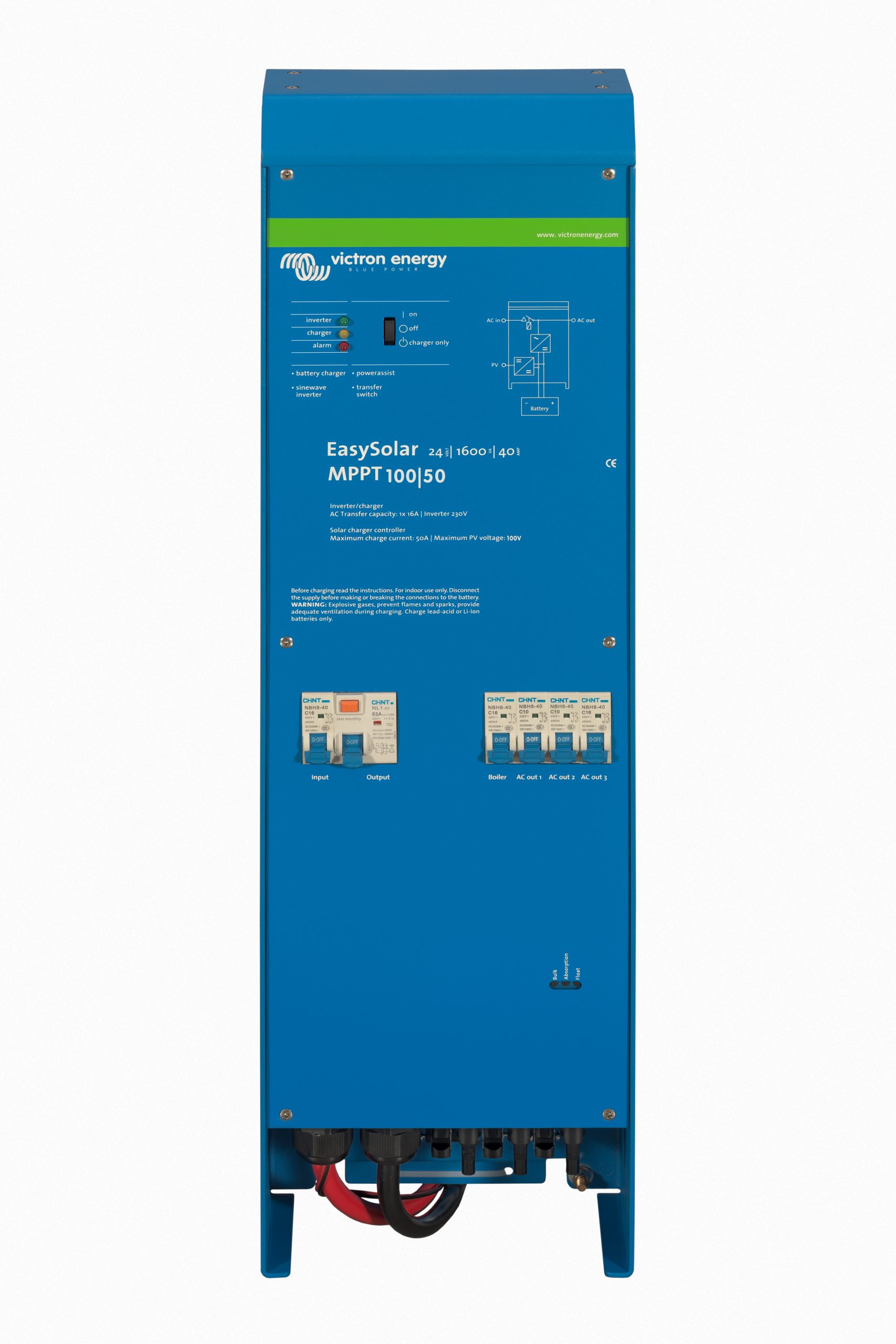

Questa è la configurazione 12/1600/70-16 a 230 V, abbinata a un regolatore MPPT 100/50.
Caratteristiche tecniche
| Dimensioni strumento | 214 mm |
|---|---|
| Materiale | Aluminium |
| Colore luce/CCT | Blue (RAL 5012) |
| Protezione IP | IP21 |
| Peso strumento | 15 kg |
| Omologazioni e certificazioni | EN 60335-1,EN 60335-2-29,EN 62109 |
| Tensione ingresso | [187, 265] VAC |
| Tensione uscita | 230 VAC |
| Potenza di uscita sonar | 1,300 W |
| Efficienza | 98 % |
| Corrente di carica/uscita | 70 A |
| Tensione FV massima | 100 V |
| Temperatura di esercizio | [-20, 50] °C |

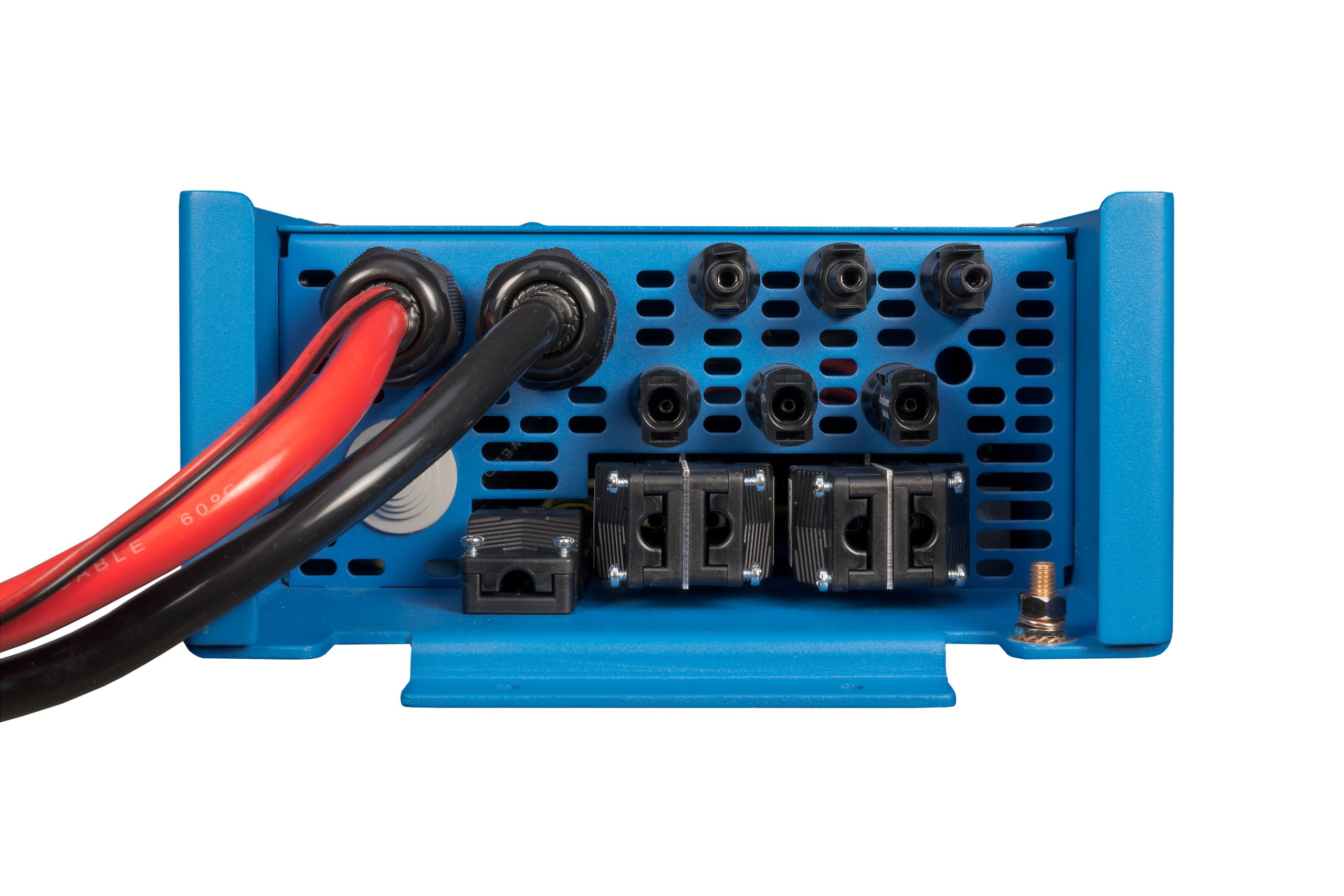

| VE.bus communication port | Two RJ45 terminals |

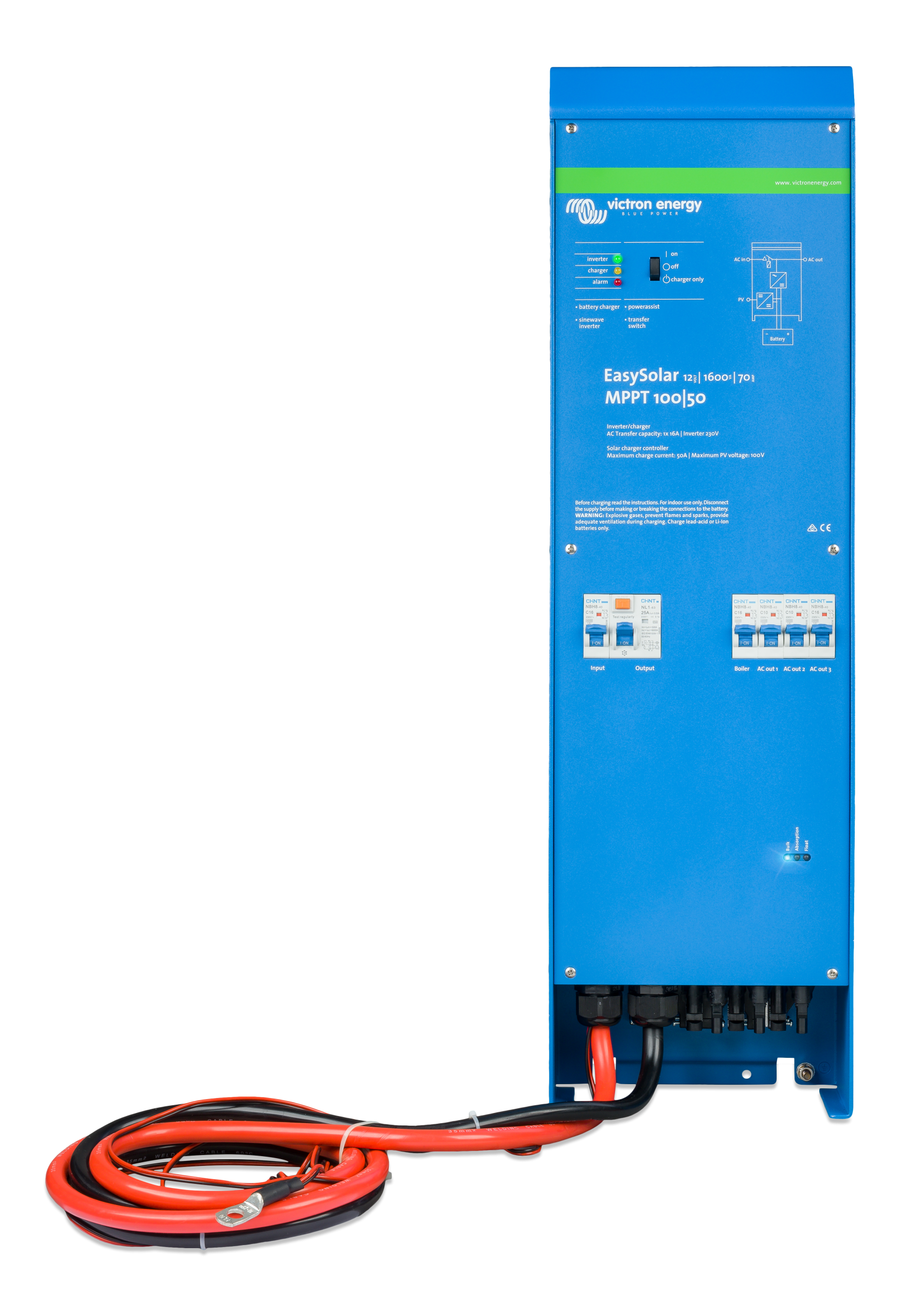

| Battery connection terminal type | Red and black 1.5 meter cable |
| Relay terminal type | Screw terminal 3-pole |
| PV connection terminal type | MC4 connectors (three pairs) |
| AC connection terminal type | G-ST18i plug |
| Remote terminal type | Screw terminal two pole |
| AC output frequency ±0.1% (adjustable) | 50 Hz |
| AC input frequency range | [45, 65] Hz |
| Nominal battery voltage | 12 V |
| Charge algorithm | Multi-stage adaptive |
| Charge voltage absorption (adjustable) | 14.4 VDC |
| Charge voltage float (adjustable) | 13.8 VDC |
| Charge voltage storage (adjustable) | 13.2 VDC |
| Communication Port | VE.Direct |
| Programming via computer or app | True |
| Continuous power at 25°C (Nonlinear load, crest factor 3:1) | 1,600 VA |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Fan assisted cooling | True |
| Maximum humidity (non-condensing) | 95 % |
| Peak power rating | 3,000 W |
| PowerAssist | True |
| PowerControl | True |
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Remote terminal | On / Off / Charger only |
| Self consumption | 10 mA |
| Solar charger model | MPPT 100/50 |
| Temperature compensation | -16 mV/°C |
| Temperature Sensor | Included |
| Transfer switch AC current rating | 16 A |
| Zero Load Power | 8 W |
| Zero load power in search mode | 2 W |
